1. Description of weight terminals "Neva weights"

1.1 Terminal NVT-1 (H)

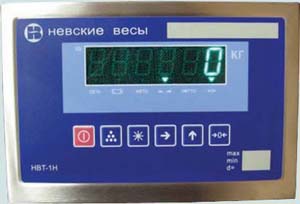

Standard view labels for NVT-1.
ÍÂÒ-1Í

NVT-1
NVT-1

NVT-1h
NVT-1Í

NVT-1h with alternative signs
NVT-1Í

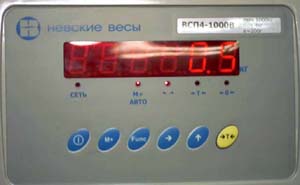

NVT-1 old
NVT-1 old

Configuring NVT-1H (NRT-1) for RS-232 with the programs of the SoftElectro:

Programming Terminal NVT-1H (NRT-1) produced in the service mode of the terminal.
To enter the service mode, open the back cover of the terminal and set the jumper EN.
Click and hold switch on the terminal by pressing
After the beep, then release both buttons.
After passing the self test the display will show: 0.0
Click display: CAL SP
Click display: -SET-
Click display: d 0.001
Click (several times) on the display: Prt 00

Prt parameter specifies the mode of the terminal via RS-232:
Prt 00's interface is disabled
Prt 01-continuous transmission of data through the interface
Prt-02 automatic transmission at the end of weigh-
Prt 03-channel data from the terminal when you press P + the persistence of memory
Prt 04-channel data from the terminal when you press P + without storing in memory
Use and set: Prt 01
Click display: b 9600
parameter b xxxx specifies the data rate for RS-232:
b 1 200 -1200 bps
b 2 400 -2400 bps
b 4.8 thousand -4800 bps
b 9,600 -9600 bps
Use and set: b 9600
other settings RS-232 terminal is constant:
number of bits per symbol: 8
parity check: N (no)
length of stop bit: 1
Turn off the terminal and set the jumper DS.

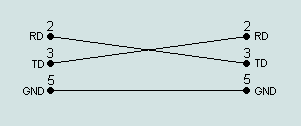

Circuit cable to connect the terminal to the PC (type connectors DB9)
Nul-modemny kabel

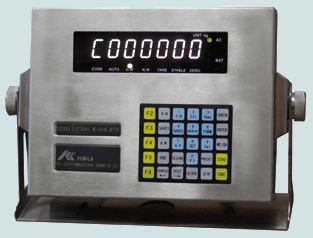

1.2 Terminal NVT-1C (CP)

information on the terminal is missing.

NVT-1C
NVT-1S

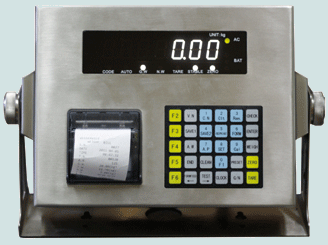

NVT-1CP
NVT-1SR


1.3 Terminal NVT-3

Standard view labels for NRT-3.

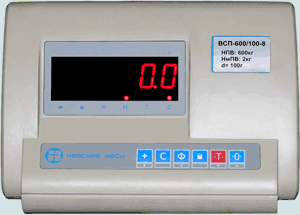

NVT-3

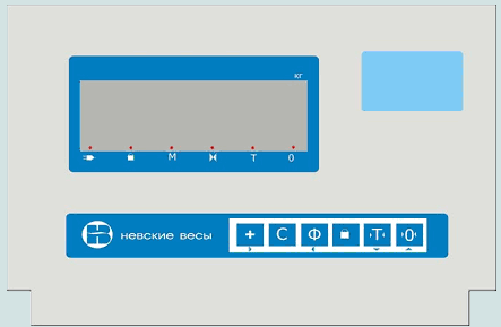

NRT-3
NVT-3

Setting

NRT-3 for the RS-232 interface with software from SoftElectro:

To enter the service mode, open the back cover of the terminal and jumper CAL to position ON.
Turn on the terminal. After self-test on the display: bc 6.00 (battery voltage)
Once the terminal enters the main mode of weighing,
simultaneously press and display: d 1 (discrete)
Click (several times) on the display: bt 0
bt x parameter determines the speed of communication via RS-232:
bt 0 -1200 bps
bt 1 -2400 bps
bt 2 -4800 bps
bt 3 -9600 bps
Use and set: bt 3
other settings RS-232 terminal is constant:
number of bits per symbol: 8
parity check: N (no)
length of stop bit: 1
Turn off the jumper to position CAL OF.

Circuit cable to connect the terminal to the PC (type connectors DB9)
Nul-modemny kabel

NRT-3 Features:
1. Mismatch standard RS-232 signals the location of the connector.
We used slot DB9S (mother), and signal routing is done in DB9P (dad)

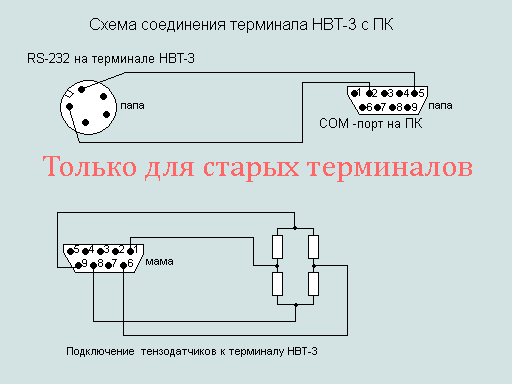

2. Some older NRT-3 RS-232 connector is used throughout, and the socket used to connect DB9S strain gauges.

1.4 Terminal NVT-5

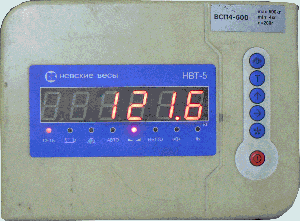

NVT-5
NVT-5

Setting

NVT-5 for the RS-232 software from SoftElectro:

Set the jumper on the board in the position of the terminal EN.
Turn the power on display : 0.0
Use select the display: SET
Use enter the menu SET: d 0.2
Use click on the display: b9600
Use select the value on the display: b9600
bxxxx parameter determines the speed of communication via RS-232:
b1200 -1200 bps
b2400 -2400 bps
b4800 -4800 bps
b9600 -9600 bps
Use exit the SET menu is displayed: 0.0
other settings RS-232 terminal is constant:
number of bits per symbol: 8
parity check: N (no)
length of stop bit: 1
Turn off the terminal and set the jumper DS.

Circuit cable to connect the terminal to the PC (type connectors DB9)
Nul-modemny kabel

2. Description of scale mark "Neva Scales"

Truck Scales
ICA-R20000 (40000,60000,80000,100000) platform from 20 to 100 tons, the terminal NVT-1H with RS-232
MAT-T15000 (30000)-1P2 (3.4), MAT-T30000-1V5 (6) bed- : P-pandusnye, B-mortise 15 to 30 tons, the terminal NVT-1H with RS-232
Carriage scales
NE-150-14 (15) carload of up to 150 tonnes
Commercial Scale
GSP-5S.1 platform from 60 to 300 kg, the terminal without the interface
GSP-5S.2 platform from 60 to 300 kg, the terminal without the interface
WWW-5TKS.2 platform from 60 to 300 kg, the terminal without the interface
WWW-8, GSP-10 platform from 300 to 2000 kg, the terminal NRT-3 with an RS-232
Platform, pallets, rod
VSP4-600 (1000,1500,2000,3000,5000) P (C) floor: the P-Pallet, C-core 600 to 5000 kg, the terminal NRT-3 with an RS-232 (or NRT-1 H)
VSP4-150 (300,500,600,1000,1500,2000,3000,5000,6000,10000) A (B, H, T) platform: A-Floor, B-locks, with the H-T-ramp to the fence from 150 to 10,000 kg, the terminal NRT-3 RS-232 (or NRT-1 H)
Trading
GSP-6/1 (6/2, 6.2,15 / 2,15,2 / 30 / 530/10, 30.2)-4T (TC, TS, TAS) trading from 6 to 30 kg terminal without the interface
WWW-15.2 (30/5)-4T (K, C, B) Suite trading from 6 to 30 kg, the terminal without the interface
Packing
VSP-0.5/0.1 (1/0.2, 2/0.5, 3/1) -1 < / a> packaging from 0.5 to 3 kg, the terminal without the interface
VSP-1/0.2 (2/0.5, 2.5/0.5, 5/1, 10/2 ) -2 packaging from 1 to 10 kg, the terminal without the interface
VSP-3/0.5 (6/1, 15/2 30/5)-2B < / a> packing from 3 to 30 kg, the terminal without the interface
VSP-3/0.5 (6/1, 12/2 30/5)-3K < / a> packing from 3 to 30 kg, the terminal without the interface
Notebooks
E68-10 (50,100,250,500) , portable from 10 to 500 g, a terminal with no interface
CD-100 (200,500) , portable from 100 to 500 g, a terminal with no interface
Laboratory
VSL-60/0.1 (200/0.1) (A) , laboratory from 60 to 205 g, a terminal with an RS-232
VSL-2K/0.01 (4K/0.01) (A) , laboratory from 2000 to 4010 g, a terminal with an RS-232
VSL-10K/0.1 (20K/0.1, 30K/0.1, 50K/0.5) (A) , laboratory from 10 to 50 kg, the terminal with an RS-232
TSA-150/5 (300/5, 600/10, 1.5K/0.02, 3K/0.05) , laboratory from 150 to 3000 g, a terminal with an RS-232
VST-6K/0.2 (6K/0.5, 60K/20, 60K/50, 600K/20, 600K / 50) , laboratory from 6 to 600 g, a terminal with an RS-232
VSN-1.5/0.1 (3/0.1, 3/0.2, 15/0.5, 15/1 , 30/1 30/2) -3 , Laboratory of 1.5 to 30 kg, the terminal without interface
, laboratory from 30 to 5000 kg, the terminal with an RS-232
scales for weighing animals
VSP4-60 (1000) AZHSO, VSP4-1000AZH, VSP4-1500PZH, VSP4-1500SZH , for animals, from 60 to 1500 kg, the terminal NRT-1 (NRT-1H) with RS-232
Crane Scale
FAC-100 (300,500,1000) A, crane scales from 100 to 1000 kg
FAC-600 (1000,2000,3000,5000) In, crane scales from 600 to 5000 kg
ECC-10000 (20000) In, crane scales from 10 to 20 m
VSC-5000 (10000,20000,30000) D, crane scales from 5 to 30 m
ECC-50000D, crane scales at 50 tonnes
